When mounting a flagpole on your rooftop, choosing the right system is critical for safety, durability, and appearance. This guide breaks down the top five mounting options to help you decide based on your roof type, flagpole height, and weather conditions:
| Option | Best Roof Type | Installation Difficulty | Flagpole Height Supported | Weather Durability | Maintenance | Cost |
|---|---|---|---|---|---|---|
| Flat Roof Mount Bracket | Flat or low-slope | Moderate | Medium | High | Low | Moderate |
| Angled Roof Mount Bracket | Pitched | Complex | Low to medium | High | Moderate | Higher |
| Shoe Base Mount | Flat concrete | Easy to moderate | Wide range | High | Low | Budget-friendly |
| Wall or Parapet Mount | Vertical walls/parapet | Easy | Small to medium | High | Low | Economical |
| Telescoping Flagpole with Sleeve | Flat (structurally sound) | High (professional needed) | Tall | Outstanding | Very low | Premium |
Each option has unique strengths depending on your specific needs. For expert advice or custom solutions, contact Action Flag at 1-800-669-9639 to ensure a secure and professional rooftop flagpole installation.
Flat roof mount brackets provide a practical way to install flagpoles on commercial, industrial, or residential flat roofs. Designed to rest directly on the roof surface, these brackets distribute the flagpole's weight evenly to reduce stress on specific areas. Let's take a closer look at the materials and features that make these brackets effective.
A wide base plate combined with built-in adjustment options ensures the flagpole remains vertical, even on slightly sloped surfaces.
To ensure long-lasting performance, these brackets are constructed using corrosion-resistant materials like high-strength aluminum alloy and stainless steel. Many manufacturers also apply anodized coatings to enhance protection against tough weather conditions. Some designs include rubber components to help secure the bracket while safeguarding the roof membrane from damage.
"The brackets feature excellent corrosion resistance and wind resistance, allowing them to endure harsh weather challenges such as strong winds and heavy rain." – FarSun
Flat roof mount brackets are built to handle extreme weather. They undergo rigorous testing to ensure they remain stable during high winds and heavy snow. For example, certain models can withstand wind speeds of up to 131 feet per second (40 m/s) and snow loads of 25 pounds per square foot (1.2 kN/m²). Additionally, waterproof designs help maintain the roof's integrity during rain, snow, or ice storms.
These brackets are versatile and work with various roofing systems, including built-up roofing (BUR), modified bitumen, EPDM, TPO, and PVC membranes. They can accommodate flagpoles of different sizes and are compatible with Action Flag's residential and commercial flagpole options, ensuring a secure and visually appealing setup.
Installing flat roof mount brackets is simple and requires only basic tools. The process involves positioning the bracket, marking the mounting points, applying sealant, and fastening it securely. However, it’s a good idea to consult a roofing professional to ensure the installation doesn’t affect your roof’s warranty.
Angled roof mount brackets are specifically designed for sloped rooftops, making them a great choice for pitched roofs. These brackets are built to handle wind loads and harsh weather while ensuring the structural stability of both the flagpole and the roof. Unlike flat roof brackets, angled mounts adjust to various roof pitches, keeping the flagpole perfectly vertical. Their slanted design also improves water drainage, helping to prevent leaks.
These brackets attach directly to the roof at an angle that matches its slope. The flagpole socket remains upright, ensuring your flag is displayed properly and the pole endures less stress during high winds. This thoughtful design is especially important for maintaining even force distribution, which adds to the system's overall durability.
Angled roof mount brackets are crafted with high-quality materials like heavy-duty 14- or 12-gauge steel or 6000 Series aluminum. To ensure long-lasting performance, they come with factory-applied butyl polymer and EPDM seals. Stainless steel screws, zinc-aluminum caps, and EPDM washers provide secure, rust-resistant fastening, making these brackets capable of standing up to the test of time.
Designed to withstand extreme weather, these brackets excel in tough conditions. Their angled structure naturally directs rainwater away, minimizing water pooling and reducing wind resistance during storms. Rigorous testing, including 2,000-hour ASTM salt-fog and waterproofing evaluations, ensures their durability and reliability.
The low-profile design not only reduces wind load but also ensures forces are evenly distributed across multiple roof attachment points. This stability is key during severe weather, protecting both the flagpole and the roof from potential damage.
Angled roof mount brackets are versatile enough to work with most residential roofing materials, such as asphalt shingles, metal roofing, tile, and slate. Each type uses specific fasteners to ensure secure installation. These brackets accommodate flagpoles with diameters ranging from 1 inch to 2 inches. Pairing these brackets with Action Flag's residential flagpoles creates a striking display that complements your home's design while maintaining structural stability.
Installing angled roof mount brackets is straightforward and tailored to rooftop setups. The process involves aligning the bracket angle with your roof’s pitch, pre-drilling pilot holes, and sealing all penetrations to maintain the roof's weatherproofing. Basic tools like a drill, level, and caulk gun are typically all you need. For steeper roofs, consulting a professional is recommended.
The angled design simplifies leveling compared to adjustable flat mounts. Once the bracket matches the roof's pitch, the flagpole socket automatically aligns vertically. Most installations take 2-3 hours, provided proper flashing and sealing techniques are used to protect the roof's weather barrier.

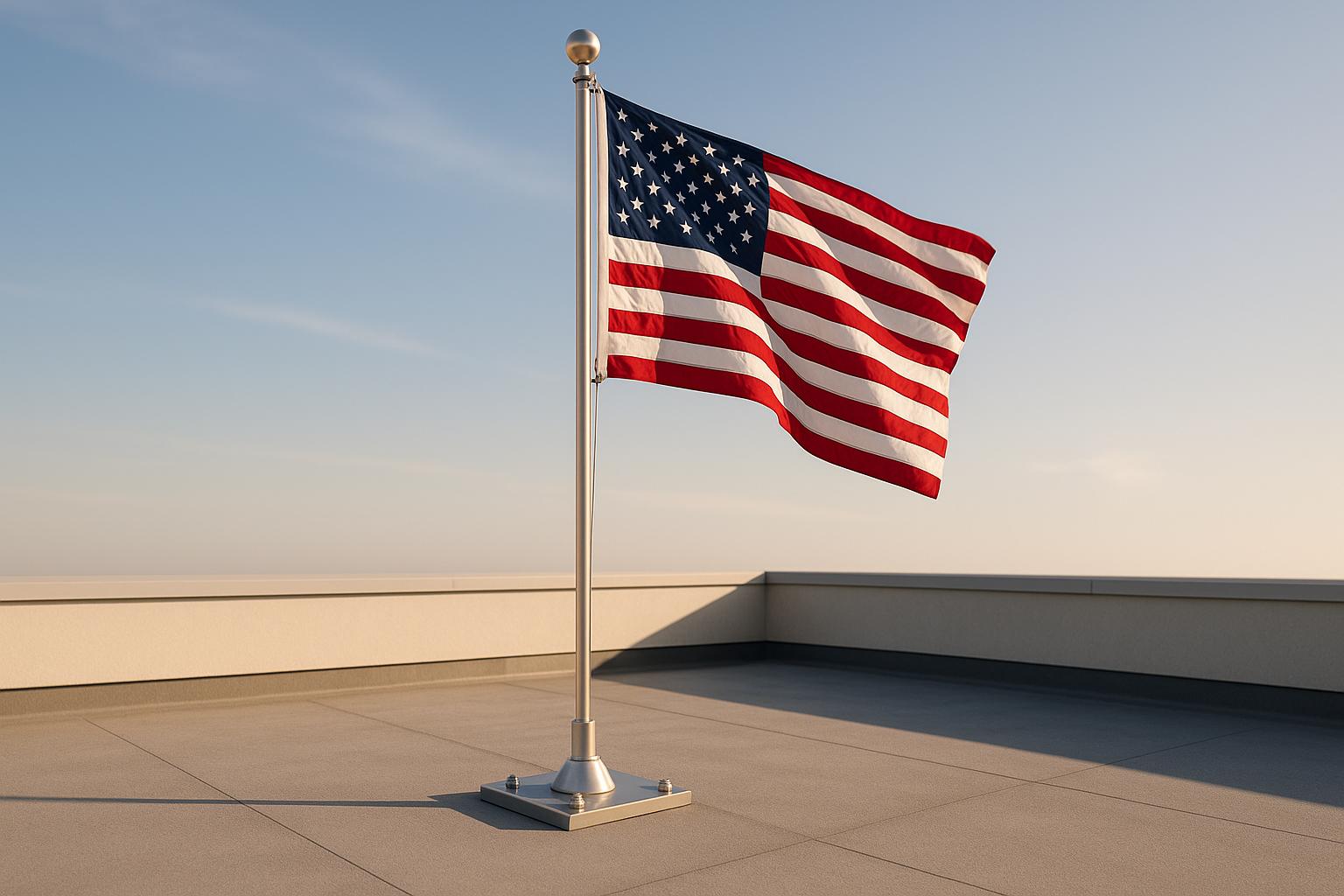

Shoe base mounts are an effective option for installing flagpoles on solid surfaces like concrete rooftops. Unlike mounts that attach directly to the roof structure, these bases spread the flagpole's weight and wind stress across a larger area. This makes them particularly suitable for commercial buildings with reinforced, flat concrete roofs.
The design features a heavy-duty base that rests directly on a prepared surface. The flagpole is secured into a socket, transferring forces directly to the foundation. This method eliminates the need for roof penetration, offering a stable and reliable alternative.
Shoe base mounts are crafted from high-grade aluminum, ensuring they can handle heavy loads and harsh conditions. The base is welded around the entire circumference of the flagpole, reducing weak points. Many tilting models eliminate the need for a flash collar, thanks to their seamless design. These models also incorporate stainless steel bolts and an aluminum pivot rod for the hinge mechanism, providing durability and smooth operation. This combination of materials ensures the mount resists corrosion and performs reliably over decades, even in challenging weather conditions.
These mounts are specifically designed for solid foundations like concrete rooftops. They can support a wide range of flagpole sizes, typically from 20 to 80 feet tall, with butt diameters of 4 inches or more. For smaller, residential flagpoles, cast aluminum shoe bases are available for diameters as small as 2⅜ inches.
When selecting a shoe base mount, it's essential to match it to the flagpole's diameter, mounting height, and wall thickness. Additionally, ensure the foundation can handle the structural demands of the flagpole and local wind conditions. Always check the maximum wind speed ratings for your area to confirm that both the flagpole and mount are suitable for severe weather.
Shoe base mounts are built to withstand extreme weather. The high-grade aluminum resists corrosion, and the circumferential welding minimizes potential water entry points, reducing maintenance needs. In coastal or salt-exposed areas, stainless steel components in tilting models provide added protection, ensuring long-lasting performance.
Proper installation is key to the performance of shoe base mounts. Accurate foundation preparation and alignment are critical. The base must be secured on a level surface and fastened according to specifications. Tilting models simplify maintenance and flag changes since the flagpole can be lowered without dismantling the entire assembly. For best results, consult a structural engineer to confirm that the foundation and installation meet the requirements for your specific flagpole and local conditions.
Wall or parapet mounts offer a practical alternative to rooftop solutions by taking advantage of a building's vertical strength. These mounts are especially useful for buildings with parapet walls, such as commercial properties, schools, and government facilities. Instead of relying on the roof surface, they attach directly to vertical walls, providing a sturdy base for flagpoles without compromising the roof's integrity.
This system uses heavy-duty brackets that secure to the wall, extending outward to hold the flagpole at the desired angle. Unlike roof-penetrating mounts, this approach spreads the load across the wall, minimizing stress on the roof while ensuring excellent stability.
Let’s dive into the materials, compatibility, weather resistance, and installation process that make wall or parapet mounts a reliable choice.
Wall or parapet mounts are typically made from marine-grade aluminum or galvanized steel, ensuring the strength needed for vertical installations. Aluminum versions feature welded construction and reinforced mounting plates to distribute stress across multiple points. High-quality models use stainless steel hardware - bolts, washers, and pivot mechanisms - for added durability, especially in tilting configurations.
The bracket arms are crafted from 6061-T6 aluminum tubing with wall thicknesses between 0.125 and 0.25 inches, depending on the flagpole's size and wind load requirements. This material offers an ideal balance of strength and weight while resisting corrosion in tough weather conditions. Many mounts also feature a powder-coated finish, available in various colors to complement the building's design.
These mounts are best suited for masonry, concrete, or steel-framed parapet walls that can handle the lateral forces created by wind. For flagpoles taller than 25 feet, the wall should be at least 8 inches thick, though a structural analysis may be necessary for larger setups.
Wall mounts are compatible with flagpoles ranging from 15 to 50 feet in height and pole diameters between 3 and 8 inches. The mounting brackets can be adjusted to project the flagpole 3 to 12 feet from the wall, allowing clearance over building overhangs, HVAC units, or other rooftop obstacles.
For multi-story buildings, mounts can be installed at various levels, but wind patterns and local building codes must be taken into account. Keep in mind that the load capacity decreases as the projection distance increases, so longer arms require stronger materials and additional wall reinforcement.
Wall mounts are designed to withstand harsh weather conditions due to their secure attachment to the building. The vertical mounting surface naturally protects against wind uplift forces that can stress roof-mounted systems. Tilting models use stainless steel pivot pins and bushings, which resist corrosion caused by rain and humidity.
To prevent water buildup, high-quality mounts include weep holes in the bracket assemblies. Additionally, neoprene washers and silicone sealants around penetration points ensure the installation remains weatherproof.
In coastal areas, the elevated position of wall mounts provides extra protection against salt spray, which can corrode ground-level installations.
Installing a wall or parapet mount involves drilling 0.5–0.75-inch holes into the masonry or concrete wall. The mounting plates are secured using wedge anchors or chemical anchors, with proper torque specifications critical for distributing the load evenly.
The process starts by marking the mounting pattern with a template, drilling to the required depth, and installing the anchors as specified by the manufacturer. For larger flagpoles or unique building designs, consulting a structural engineer is highly recommended.
Tilting wall mounts simplify maintenance by allowing the flagpole to be lowered for flag changes or inspections. This is achieved through a removable handle or winch system, depending on the flagpole's size and weight, eliminating the need for ladders or aerial lifts.
For flagpole lighting, concealed conduit runs can be added within the wall structure, with weatherproof connections at the mounting bracket. Professional installation ensures compliance with local building codes and electrical standards, making the setup both safe and efficient.
This option blends clever engineering with practical design, making it a standout choice for rooftop flag displays. The telescoping flagpole system with a roof sleeve allows for easy operation from ground level while offering the benefits of a high, rooftop-mounted flagpole. The setup includes a permanently installed sleeve that guides the adjustable flagpole, enabling it to be raised, lowered, or even removed - all without requiring access to the roof.
This system strikes a balance between secure installation and user convenience, offering a sleek and functional solution for displaying flags.
The materials used in this system are built to last. Weather-resistant metals and hardware ensure the flagpole can handle tough conditions. The roof sleeve is specifically designed to protect against water intrusion while securely guiding the flagpole during adjustments.
This telescoping system works best on roofs with solid structural support, such as flat or low-slope roofs, where the sleeve won’t interfere with water drainage. For pitched roofs, additional measures like flashing or reinforcement might be necessary to ensure a safe and stable setup.
The roof sleeve doubles as a protective barrier, redirecting moisture away from the installation point to prevent leaks. This feature is particularly useful in areas prone to heavy rain or harsh weather, helping to extend the lifespan of the system.
Installing this system starts with a professional evaluation to assess the roof's structural integrity and determine if extra reinforcement or flashing is needed. Once in place, the flagpole can be adjusted easily from inside the building using manual or electric controls. This design makes flag changes quick and safe, eliminating the risks associated with climbing onto the roof.
When it comes to selecting the right rooftop flagpole mounting option, having a side-by-side comparison can make the decision process much easier. Below, you'll find a table that breaks down the key features of each mounting option to help you weigh your choices:
| Mounting Option | Best Roof Type | Installation Complexity | Flagpole Height Compatibility | Weather Resistance | Maintenance Level | Cost Range |
|---|---|---|---|---|---|---|
| Flat Roof Mount Bracket | Flat or low-slope roofs | Moderate | Suited for medium-height flagpoles | Excellent when properly sealed | Low | Moderate |
| Angled Roof Mount Bracket | Pitched roofs | More complex | Best for lower to medium-height poles | Good with proper flashing | Moderate | Higher |
| Shoe Base Mount | Flat roofs with parapets | Easy to moderate | Accommodates a wide range of heights | Excellent | Low | Budget-friendly |
| Wall or Parapet Mount | Buildings with walls or parapets | Easy | Ideal for small to medium flagpoles | Very good | Low | Economical |
| Telescoping Flagpole with Roof Sleeve | Structurally sound flat roofs | High - requires professional installation | Suited for taller flagpoles | Outstanding | Very low | Premium |
This chart highlights each option's strengths, from installation difficulty to weather durability and cost. Each mounting style is tailored to specific roof types and flagpole needs, ensuring you can find the right fit for your setup.
Flag size compatibility is another key factor to keep in mind. Smaller mounts, such as wall or parapet options, pair well with standard-sized flags. On the other hand, telescoping systems are designed to handle larger flags thanks to their increased height and reinforced support. By reviewing this chart, you can quickly compare the performance of each mount and choose the one that best suits your rooftop and flagpole requirements.
Choosing the right mount from our top options ensures your flag is displayed securely and stylishly. The best choice depends on factors like your roof type, the height of the flagpole, and the local weather conditions.
If you live in an area prone to high winds or severe storms, it’s worth investing in tougher options like telescoping systems to ensure your flag stays put.
Action Flag specializes in rooftop flagpole installations and offers a range of standard mounts, along with custom accessories for unique challenges. Their expertise spans everything from simple residential setups to more complex commercial projects.
"Just give us a call and our dedicated customer service team will guide you through the process, ensuring a final product that meets your expectations. With Action Flag, your custom flag and banner needs are in capable, experienced hands."
- Action Flag
For expert advice or custom solutions, reach out to Action Flag at 1-800-669-9639. Their team is ready to help you find the perfect mounting system for your needs.
A well-chosen mount not only protects your flag from the elements but also enhances its overall appearance. Take time to evaluate your roof type, climate, and maintenance preferences to make the best decision.
When picking a rooftop flagpole mount, you need to think about a few key factors: wind resistance, stability, and ease of installation. Rooftops often face tough weather, so the mount should securely hold the pole and handle strong winds and heavy rain without issue.
Don't forget to check local regulations to make sure your setup complies with any rules in your area. Also, consider how the mount will blend with your building's appearance. Look for materials that are tough enough to resist corrosion and wear over time. And one last thing - make sure the flagpole's height and the flag's size work together, so the display is both visible and visually balanced.
To keep your rooftop flagpole secure during harsh weather, opt for materials like aluminum, fiberglass, or stainless steel, as these can withstand strong winds. Make sure the pole is designed to handle high wind speeds. Equally important is proper installation - use a sturdy mounting system and carefully follow the manufacturer’s instructions.
Regular maintenance is also essential. Check the flagpole and its mounting hardware frequently for any signs of wear or damage. When severe weather is on the way, consider lowering the flag or removing it temporarily to reduce stress on the pole and avoid potential damage.
Regular upkeep is key to keeping rooftop flagpole mounts safe and durable. Start by cleaning the mount and pole with mild soap and water to clear away dirt and debris. It’s also important to inspect for rust, corrosion, or any signs of structural damage. If you live in an area prone to high winds, make it a priority to check that the mounting hardware is secure and that the foundation is stable.
Aim to inspect your flagpole and mount every 3 to 6 months. Look for any shifting, cracks, or signs of wear in the materials. Consistent maintenance not only keeps your flagpole in good shape but also ensures it proudly displays your flag for years to come.
