Product Description:

Overview

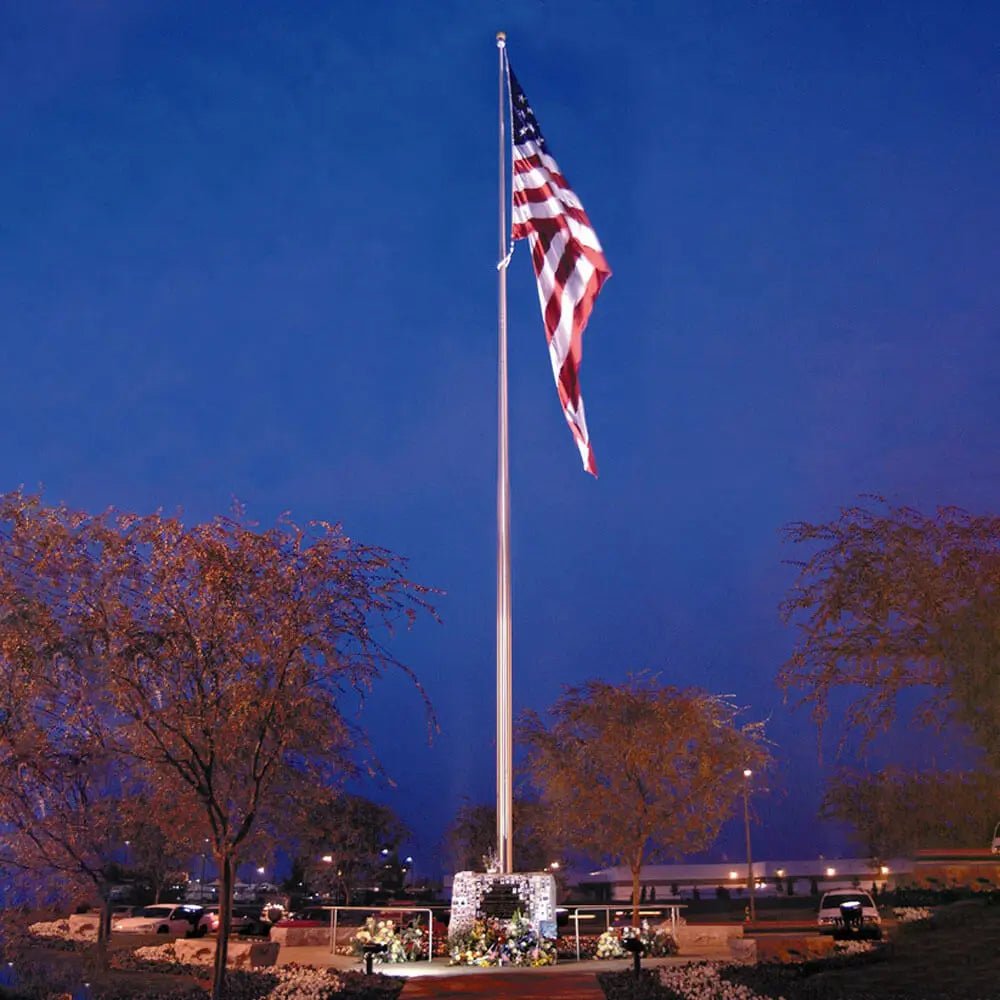

Make an unforgettable impression with the BigFlag 160x30 Large Steel Flagpole—our tallest and most commanding model. Standing 160 feet tall with a massive 30-inch butt diameter, this monumental steel flagpole is engineered to display a 40x80 ft American flag (flag sold separately) with pride and strength in any environment.

Ideal for monumental civic projects, military bases, corporate headquarters, or large-scale public displays, this pole includes a motorized internal winch system for effortless, secure flag operation.

Key Specifications

• Material: A-36 Carbon Steel

• Exposed Height: 160 feet

• Butt Diameter: 30 inches

• Wall Thickness: 0.5 inches

• Flag Size Capacity: 40x80 ft (flag not included)

• Shipping Sections: 4 large tapered segments

• Wind Rating (Flagged): 90 mph

• Wind Rating (Unflagged): 130 mph

Engineering & Compliance

• Designed to meet ANSI/NAAMM FP-1001-97 specifications

• Fully compliant with wind and ice loading codes across all U.S. regions

• Custom foundation designs and stamped drawings available upon request

Construction & Materials

• Built with A-36 Carbon Steel (36,000 PSI yield)

• Seamless concentric steel reducers for smooth tapering

• Includes:

  • Corrugated steel foundation sleeve

  • Steel base plate

  • Lightning spike arrestor

  • Touch-up paint for long-term finish maintenance

• Finished with:

  • Chemically cured epoxy primer

  • Aliphatic urethane gloss enamel topcoat for weather and UV protection

Motorized Winch & Hardware

• Internal Stainless Steel Electric Winch System

• Heavy-Duty Revolving Truck Ball Assembly

• 1.25” Stainless Steel Spindle

• 1/8” Aircraft-Grade Stainless Cable

• Locking internal winch with removable handle

• Beaded retainer rings, counterweight, snaphooks, connecting links, and complete flag arrangement

Warranty & Support

• Covered by a 1-Year Limited Manufacturer’s Warranty on the shaft

• Installation support and financing options available

Important Notes

• Flag not included

• All flagpoles are pre-blasted and primed before shipment

• Prices may vary with steel market rates — contact us for a quote

• Professional installation highly recommended
