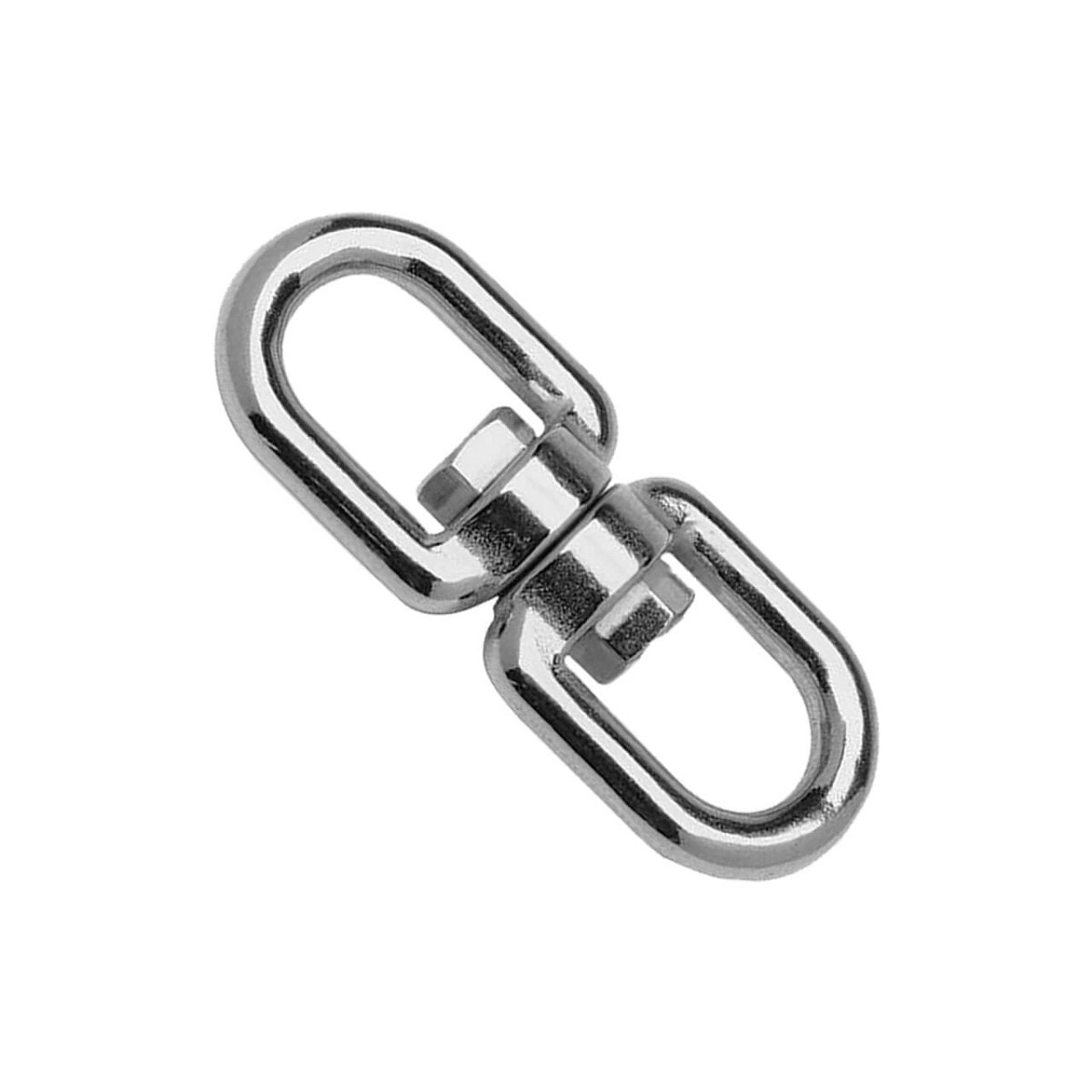

Stainless Steel Eye & Eye Swivel – 316 Marine Grade Flagpole Rigging Swivel

Stainless Steel Eye & Eye Swivel – Essential Flagpole Rigging Hardware

The stainless steel eye & eye swivel is a critical component in flagpole rigging systems, designed to prevent twisting, binding, and premature wear of your halyard cable or rope. Installed between connection points, this swivel allows smooth 360° rotation under load, ensuring your flag flies freely without tangling or stressing your hardware.

Ideal for internal halyard flagpoles, cable assemblies, and counterweight systems, this component improves both performance and longevity of your entire flagpole system.

What Does an Eye & Eye Swivel Do?

A swivel is a mechanical connection that allows rotation between two attached components, preventing torsion buildup in cables or rigging systems. This rotation helps eliminate twisting forces that can damage cables, hardware, or flags over time.

In flagpole applications, this means:

• Prevents halyard cable twisting and kinking
• Reduces wear on pulleys, trucks, and fittings
• Improves flag movement in changing wind conditions
• Extends the lifespan of your rigging system

316 Stainless Steel Construction

Manufactured from AISI 316 marine-grade stainless steel, these swivels offer superior corrosion resistance and long-term durability in outdoor environments.

• Material: 316 stainless steel (marine grade)
• Finish: Smooth, corrosion-resistant polished surface
• Construction: Precision cast or forged for strength
• Rotation: Full 360° swivel action under load

316 stainless steel is widely regarded as the preferred material for marine and outdoor rigging due to its ability to resist rust, oxidation, and environmental exposure.

Available Sizes & Load Ratings

Eye & eye swivels are available in multiple sizes to match your flagpole cable diameter and system requirements.

• Common sizes: 3/16", 1/4", 5/16", 3/8", 1/2", and larger
• Working Load Limits (WLL): Vary by size and application
• Heavy-duty options available for large commercial flagpoles

Larger diameter swivels can support significant loads, with some heavy-duty models exceeding 10,000 lbs working load capacity depending on size and configuration.

Flagpole Applications

• Internal halyard flagpole systems
• Cable-based flagpole assemblies
• Counterweight rigging systems
• Snap hook and retainer ring connections
• Large flag installations and high-wind environments

This swivel is especially important for large flags and tall flagpoles, where rotational forces from wind can quickly damage non-rotating connections.

Installation & Compatibility

The eye & eye design allows for simple integration into existing rigging systems using:

• Shackles
• Quick links
• Snap hooks
• Wire rope thimbles

It is commonly installed inline within the halyard assembly to allow continuous rotation without compromising strength.

Important Safety Notes

• Not intended for overhead lifting applications
• Always match swivel size to cable and load requirements
• Do not exceed rated working load limits (WLL)
• Inspect regularly for wear in high-use environments

Frequently Asked Questions

What is an eye & eye swivel used for on a flagpole?

It allows the halyard cable to rotate freely, preventing twisting and extending the life of your flagpole rigging system.

Do I need a swivel for my flagpole?

If your system uses cable or experiences twisting from wind, a swivel is highly recommended to prevent premature wear and failure.

Why use 316 stainless steel?

316 stainless steel provides superior corrosion resistance, making it ideal for outdoor and coastal environments.

Where should the swivel be installed?

Typically inline within the halyard system between the cable and hardware connections such as snap hooks or counterweights.

What size swivel do I need?

Select a swivel that matches or exceeds your cable diameter and load requirements. When in doubt, size up for durability and safety.
