A 1-1/4-inch NPT flagpole truck can measure about 1.660 inches across its threads - not 1.25 inches. I recommend checking the nominal thread size before ordering or returning a truck. NPT labels aren’t exact ruler measurements.
Here’s what I’d check:
- Diameter: Compare clean male-thread measurements with the NPT chart. Don’t treat the female opening as the same measurement.
- Thread type: Confirm tapered NPT threads using the old truck or pole records. The three sizes listed all use 11.5 threads per inch, so pitch alone won’t identify the size.
- Fit and safety: Get qualified help if you can’t safely reach the connection. <u>Start the truck by hand and stop if it binds.</u>
Still unsure? I’d send Action Flag your measurements and clear photos before installing or returning the part.
Why Your 1-1/4-Inch NPT Truck Measures About 1-5/8 Inches
Nominal NPT Size vs. Measured Thread Diameter

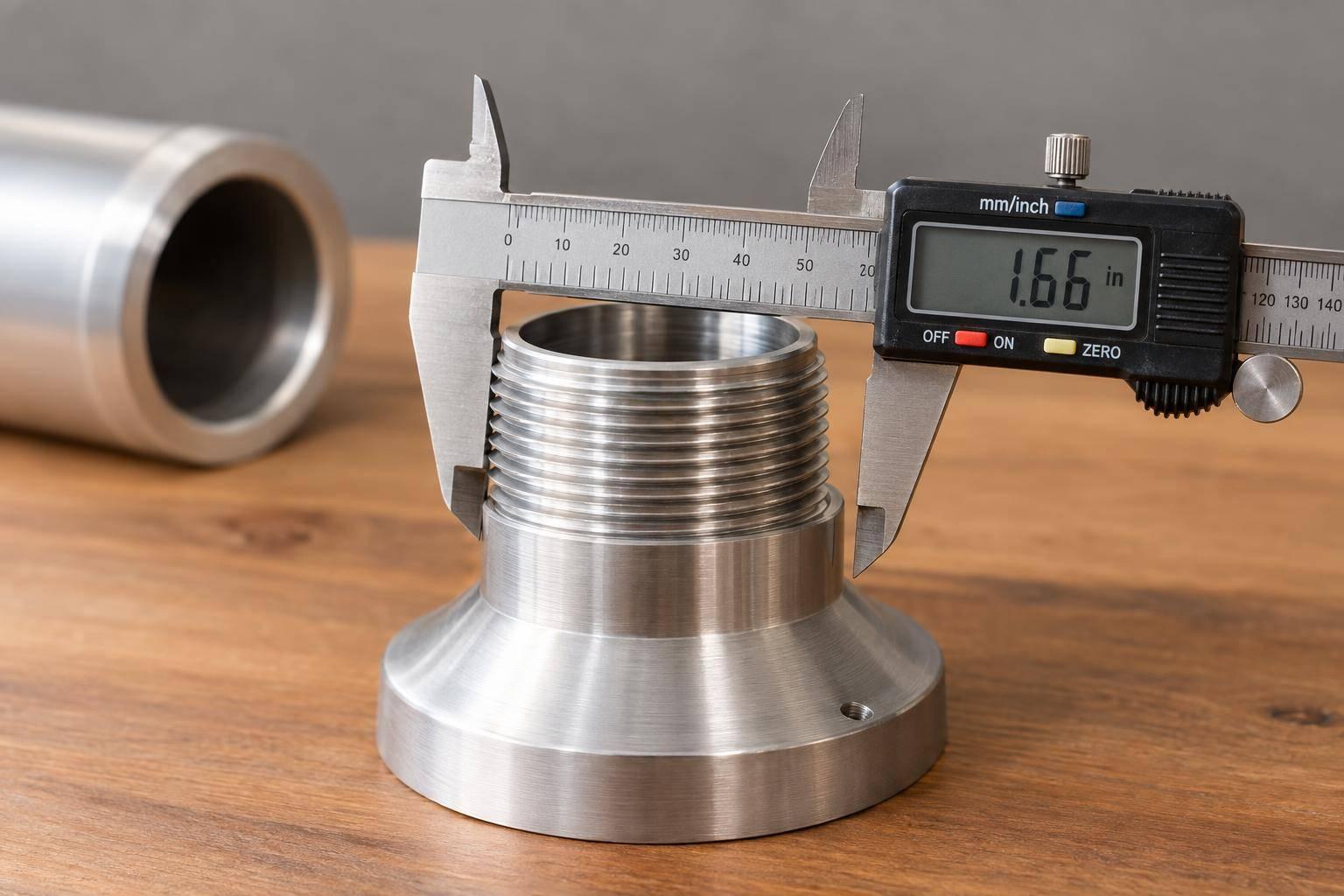

A 1-1/4-inch NPT truck measures about 1.660 inches across the threads. That means a reading near 1-5/8 inches is normal. NPT stands for National Pipe Thread, and its size is nominal - the label isn’t meant to match your ruler reading.
RTS-1-125 is still the correct 1-1/4-inch NPT part.
Before returning the part, check its thread size.
Check Your Truck Before Requesting a Return
First, remove any old thread tape, sealant, or debris. Then use calipers to measure across the thread crests, not the smooth body or wrench flats. NPT threads taper, so your reading will change depending on where you measure. Paint, plating, and worn crests can affect the measurement, too.
Compare your measurement with the chart below, then check the product label and your order details. If you have a thread pitch gauge, check for 11.5 TPI, but don’t use pitch alone to identify the size. A reading near 1-1/4 inches points to 1-inch NPT, which has a reference outside diameter of about 1.315 inches.
If the size still seems off, measure the pole opening next to confirm which truck size you need before requesting a return.
sbb-itb-4fbc981
How to Measure Your Flagpole Before Ordering
If your truck’s ruler reading still seems off, check the pole opening before requesting a return. Whether you’re buying or troubleshooting, the pole’s threaded opening - not the truck’s ruler reading - determines the replacement size.
Measure the Threaded Opening
Before ordering, make sure you can safely reach the truck from the ground or a standard ladder. If you can’t, get qualified help.
Remove the existing truck or cap with two wrenches: one to hold the pole or adapter steady and another to turn the fitting. This keeps torque off the pole.
Clear away sealant and debris, then check for damaged threads. Use digital calipers to measure the inside diameter of the female threads.
A 1-1/4-inch pole opening usually points to 1-inch NPT, not 1-1/4-inch NPT. NPT threads are tapered, so treat the opening measurement as a clue rather than a final answer.
If the measurement is still unclear, check it against the old truck or the pole records.
Verify the Size With the Old Truck or Pole Records
Before ordering - or returning a part you received - match the old truck’s thread size to the chart below or confirm the NPT size in the pole records. Check that the connection uses tapered NPT threads. If the records list straight threads, it isn’t a direct NPT match.
If using calipers is difficult, test-fit a known male NPT part before ordering.
NPT Size and Male-Thread Diameter Chart

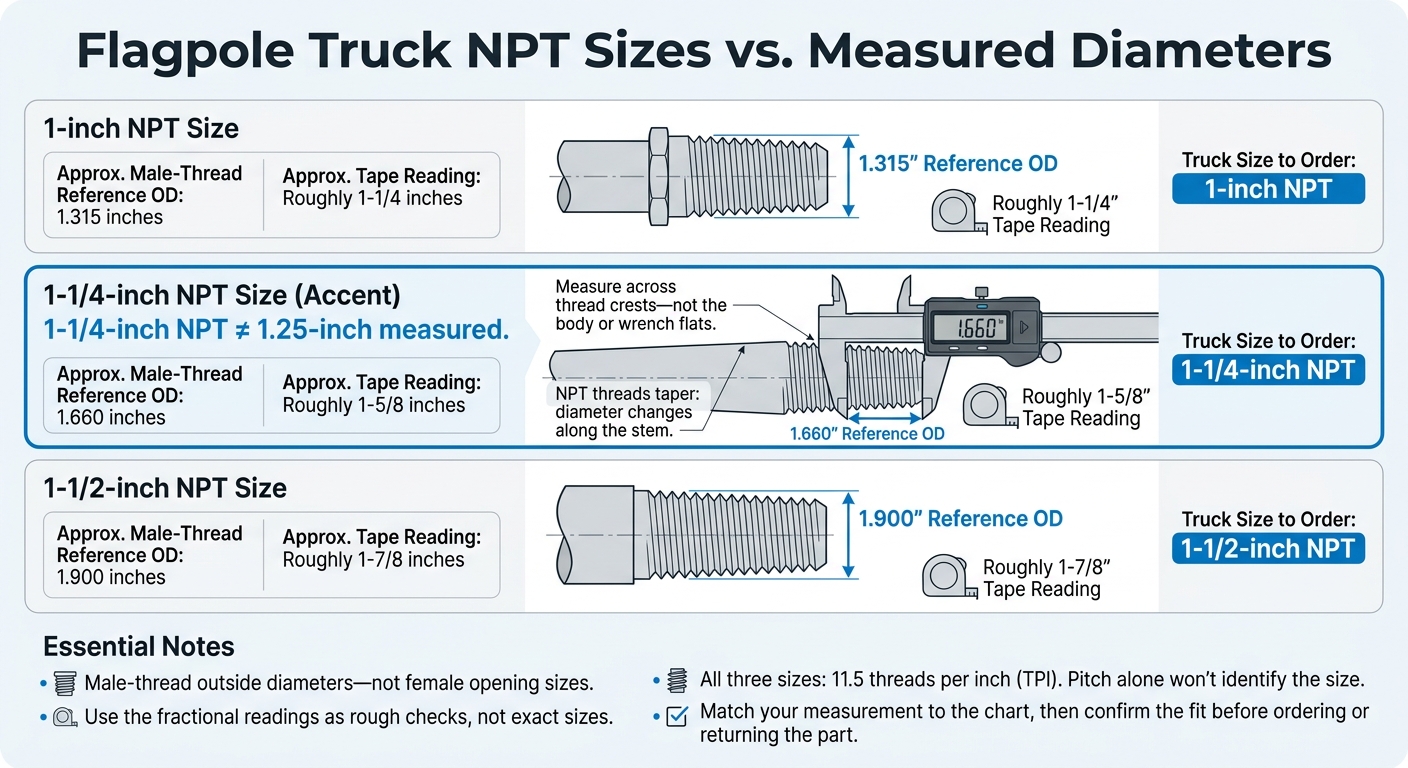

Flagpole Truck NPT Sizes vs. Measured Diameters
This chart shows male-thread outside diameters - not female opening sizes.
If your measurement is close to 1-5/8 inches, use the 1-1/4-inch row.
| Nominal NPT Size | Approximate Male-Thread Reference OD | Approximate Tape Reading | Truck Size to Order |
|---|---|---|---|
| 1-inch NPT | 1.315 inches | Roughly 1-1/4 inches | 1-inch NPT |
| 1-1/4-inch NPT | 1.660 inches | Roughly 1-5/8 inches | 1-1/4-inch NPT |
| 1-1/2-inch NPT | 1.900 inches | Roughly 1-7/8 inches | 1-1/2-inch NPT |
Match your measurement to the chart, then confirm the fit before ordering or returning the part.
Use the fractional readings as rough checks, not exact sizes. NPT threads taper, so the diameter changes along the stem.
For a consistent reading, measure across the thread crests at the widest point - not across the body or wrench flats. Then compare your measurement with the decimal reference column.
All three sizes use 11.5 threads per inch (TPI). Pitch can help confirm the thread type, but it won't tell you the size.
Conclusion: Check the Fit Before Installation
After the chart points you to a size, check the fit before installation. Compare that size with the truck’s nominal NPT size and the old truck or pole records. This check helps prevent a bad fit, return shipping, and installation delays.
Clean the threads with a brush or lint-free cloth. Check for burrs, corrosion, or flattened crests. Start the truck by hand. If it binds or cross-threads, stop, back it out, and recheck the threads and size. If it still won’t seat cleanly, confirm the size before proceeding.
If you’re still unsure about the fit, contact Action Flag before installing or returning the part. Send your measurements, pole records, and clear photos of the connection. Specify whether you measured the male threads or the female opening.
FAQs
How can I distinguish NPT from straight threads?
Measure the diameter at two points along the threads to check for taper. NPT (National Pipe Taper) threads narrow toward the end, so the diameter changes. Straight threads, such as NPS (National Pipe Straight), keep the same diameter.
Then check the threads per inch (TPI) against a standard reference chart to confirm your findings. Diameter alone can be misleading.
Does matching NPT size guarantee my truck will fit?
No. Matching the nominal NPT size alone doesn’t guarantee a fit. NPT size is a trade designation, not a direct measurement. Different sizes can also have the same thread pitch, measured in threads per inch.
To check the fit, measure the thread diameter with calipers. Then compare the diameter, thread pitch, and taper with a standard NPT reference chart to confirm a reliable connection.
How can I tell if my pole threads need repair?
Remove old sealant, dirt, and corrosion. Then check the threads for flattened or rolled-over crests, burrs, cross-threading, tool damage, or galling.
Test-fit the parts carefully. A loose fit, unexpected binding, or failure to seal may point to damage. If you’re unsure, don’t force the connection. For safety-critical or high-pressure applications, use a professional thread gauge or consult a professional to determine whether the parts need replacement.
